The Virgo Supercluster

from UniverseReview Website



Local Group of galaxies

The Milky Way (see below insert) is a member of the Local Group of galaxies, which in turn is a part of

Figure 03-06

Virgo Supercluster

the Virgo supercluster (see Figure 03-06).


It is centered on the Virgo cluster and extends some 150 million ly across.


The Virgo cluster itself contains thousands of galaxies including M87 (right), which is known to surround a gigantic black hole. Virgo's gravity affects the movement of its neighbors, including the Local Group. (below right)


The supercluster is the last outpost before a space traveler would enter a nearly galaxy-free region called a cosmic void. Actually, even the supercluster has a mass equaling some thousand trillion suns, virtually all its volume is empty in such a vast

Andromeda Galaxy



The Local Group of galaxies extends some 4 million ly (light years) across.


Most galaxies in the group are considered dwarfs, but the two largest - the Milky Way and the Andromeda galaxy (left) - are giant spirals.


The galaxies of the Local Group are traveling together through space - indicating a common origin.





The Milky Way

from UniverseReview Website

There are about 4x1010 galaxies in the universe.


Among this multitude of galaxies, 34% are spirals, 20% are ellipticals, and 54% are irregular. We happen to live in an ordinary spiral galaxy called the Milky Way.


On a clear night and with the aid of

Figure 05-11

MW, Earth's View

Figure 05-12

MW, All Sky View

Figure 05-13


long exposure time, it appears like a silvery bridge across the sky as shown in Figure 05-11.


It is a view looking from inside the galactic disk. An all sky (panoramic) view is shown in Figure 05-12.


If we could fly away from the Milky Way and look back, the view would be similar to the spiral galaxy NGC 3370 as depicted in Figure 05-13.


Similar in size to our own Milky Way, spiral galaxy NGC 3370 lies about 100 million light-years away toward the constellation Leo. It contains a mixture of young stars in the bluer regions and an older population in the yellowish center.


The total mass of NGC 3370 and the Milky Way is estimated to be several 1011 solar mass. The main components of the Milky Way consist of a nucleus at the center, a nuclear bulge, a disk in the form of spiral arms winding around this nucleus, and a halo, which covers both the nucleus, the disk, and contains a spherical distribution of globular clusters (see below

Figure 05-15

The Components



Figure 05-14

The Milky Way

insert) as shown in Figure 05-14.

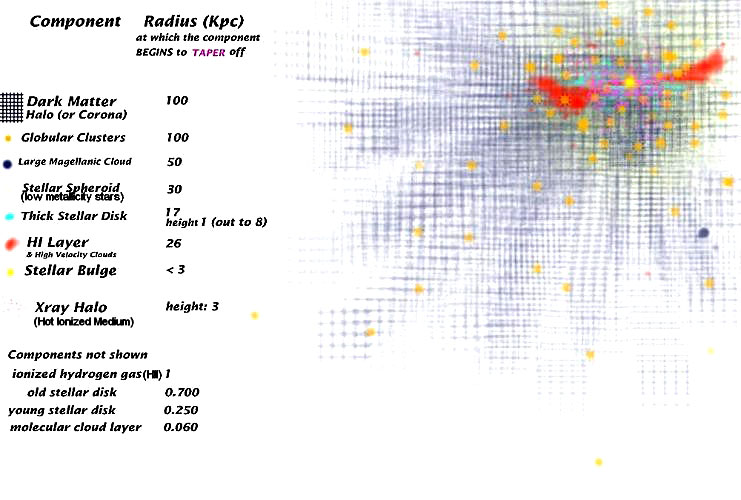

The radius of the visible disk is about 20 kpc with the Sun located 15 kpc from the center. Figure 05-15 shows the location of the various components within the Milky Way up to 100 kpc from the center.

The Milky Way does not exist in isolation and is not a finished work as perceived

Figure 05-16a

Milky Way Neighborhood

by astronomers many years ago. It is observed that most galaxies formed from the merging of smaller precursors, and in the case of the Milky Way, we can observe the final stages of this process.


As shown in Figure 05-16a, the Milky Way is tearing apart small satellite galaxies (such as the Large and Small Magellanic Clouds - click below images) and incorporating their stars. Meanwhile hot intergalactic gas clouds are continually arriving from intergalactic space.


The evidence for the continuing accretion of gas by the Milky Way involves high-velocity clouds (HVCs) - mysterious clumps of hydrogen, up to 10 million solar mass and 10,000 ly across, moving rapidly (from 90 to 400 km/sec) through the outer regions of the galaxy.


These materials form the reservoir from which the Milky Way can draw on to make new stars.


The Large and Small Magellanic Clouds

Large Magellanic Cloud

Small Magellanic Cloud

Open Cluster,

M35 & NGC 2158

Open Cluster,



The disk of the Milky Way exhibits a spiral structure, which shows up in the distribution of objects populating the disk component.


These objects include, the HI regions of neutral hydrogen atoms, the population I objects such as young stars, diffuse star-forming nebulae, H II regions of ionized hydrogen atoms and open star clusters (right).



Figure 05-16b

Barred Milky Way

population I objects are very young, in contrast to the very old population II objects in the Milky Way's Halo (globular clusters and old stars, including older planetary nebulae).


The arms of the Milky Way, at least near the solar neighborhood in our Galaxy, are typically named for the constellations where more prominent parts of them are situated.


The solar system is trundling around at nearly 200 km/sec in the Local or Orion Arm - a spur in between the more substantial Sagittarius and Perseus arms.


The Milky Way is now known as a barred spiral. The evidence, at first indirect, began to accumulate in 1975: stars and gas tracked in the middle of the Milky Way did not follow the orbits they would if the spiral pattern reached all the way in.


Recent surveys of the sky in near-infrared light have revealed the bar directly and dispelled the remaining doubts (Figure 05-16b)







Globular Clusters

from UniverseReview Website

Figure 06-01 shows a dense swarm of stars called Omega Centauri.


It is located some 17,000 light-years from Earth. Omega Centauri is a massive globular star cluster, containing several million stars swirling in locked orbits around a common center of gravity.

Figure 06-01

Globular Cluster,
Omega Centauri

 (NGC 5139)


The stars in Omega Centauri are all very old, about 12 billion years. They are packed so densely in the cluster's core that it is difficult for ground-based telescopes to make out individual stars.


Those in the core of Omega Centauri are so densely packed that occasionally one of them will actually collide with another one. Even in the dense center of Omega Centauri, stellar collisions will be infrequent. But the cluster is so old that many thousands of collisions must have occurred. When stars collide head-on, they probably just merge together and make one bigger star.


But if the collision is a near miss, they may go into orbit around each other, forming a close binary star system.


Omega Centauri is the most luminous and massive globular star cluster in the Milky Way. It is one of the few globular clusters that can be seen with the unaided eye.
